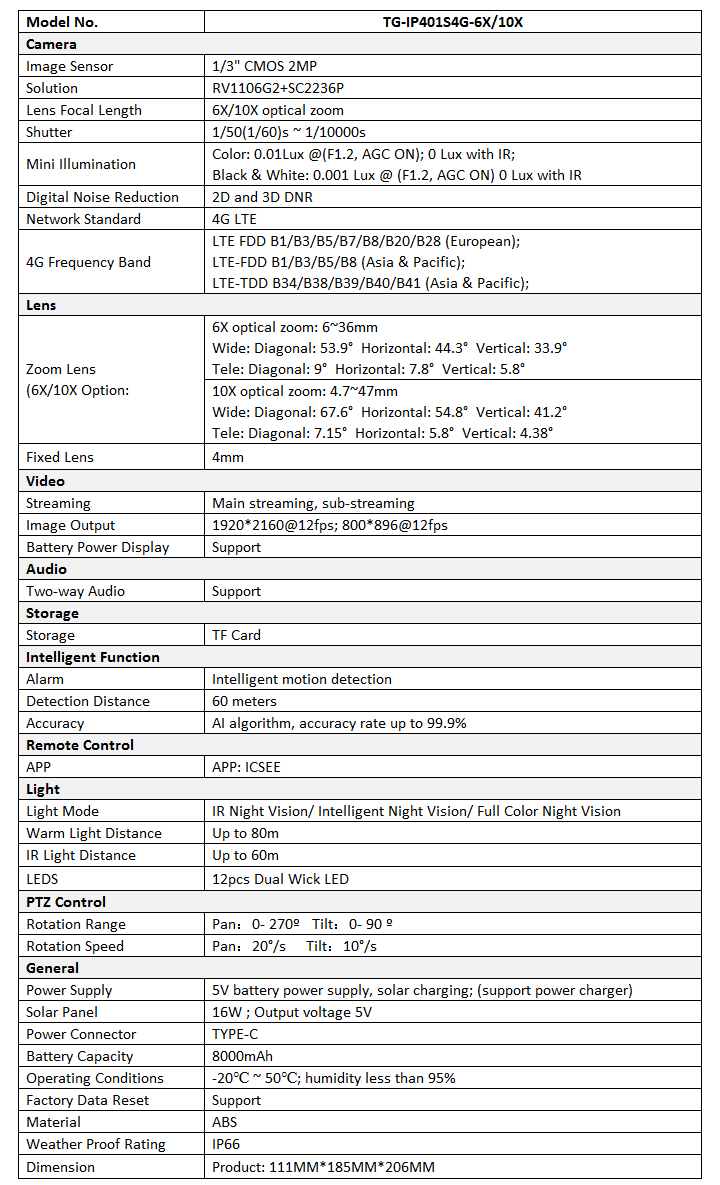

Camera

Image Sensor

1/3" CMOS 2MP

Solution

RV1106G2+SC2236P

Lens Focal Length

6X/10X optical zoom

Shutter

1/50(1/60)s ~ 1/10000s

Mini Illumination

Color: 0.01Lux @(F1.2, AGC ON); 0 Lux with IR;

Black & White: 0.001 Lux @ (F1.2, AGC ON) 0 Lux   with IR

Digital Noise Reduction

2D and 3D DNR

Network Standard

4G LTE

4G Frequency Band

LTE FDD B1/B3/B5/B7/B8/B20/B28 (European);

LTE-FDD B1/B3/B5/B8 (Asia & Pacific);

LTE-TDD B34/B38/B39/B40/B41 (Asia & Pacific);

Lens

Zoom Lens

(6X/10X Option:

6X optical zoom: 6~36mm

Wide: Diagonal: 53.9°  Horizontal: 44.3°  Vertical: 33.9°

Tele: Diagonal: 9°    Horizontal: 7.8°  Vertical: 5.8°

10X optical zoom: 4.7~47mm

Wide: Diagonal: 67.6°  Horizontal: 54.8°  Vertical: 41.2°

Tele: Diagonal: 7.15°  Horizontal: 5.8°  Vertical: 4.38°

Fixed Lens

4mm

Video

Streaming

Main streaming, sub-streaming

Image Output

1920*2160@12fps; 800*896@12fps

Battery Power Display

Support

Audio

Two-way Audio

Support

Storage

Storage

TF Card

Intelligent Function

Alarm

Intelligent motion detection

Detection Distance

60 meters

Accuracy

AI algorithm, accuracy rate up to 99.9%

Remote Control

APP

APP: ICSEE

Light

Light Mode

IR Night Vision/ Intelligent Night Vision/ Full   Color Night Vision

Warm Light Distance

Up to 80m

IR Light Distance

Up to 60m

LEDS

12pcs Dual Wick LED

PTZ Control

Rotation Range

Pan：0- 270º   Tilt：0- 90 º

Rotation Speed

Pan：20°/s     Tilt：10°/s

General

Power Supply

5V battery power supply, solar charging; (support   power charger)

Solar Panel

16W ; Output voltage 5V

Power Connector

TYPE-C

Battery Capacity

8000mAh

Operating Conditions

-20℃ ~ 50℃; humidity less than 95%

Factory Data Reset

Support

Material

ABS

Weather Proof Rating

IP66

Dimension

Product: 111MM*185MM*206MM
