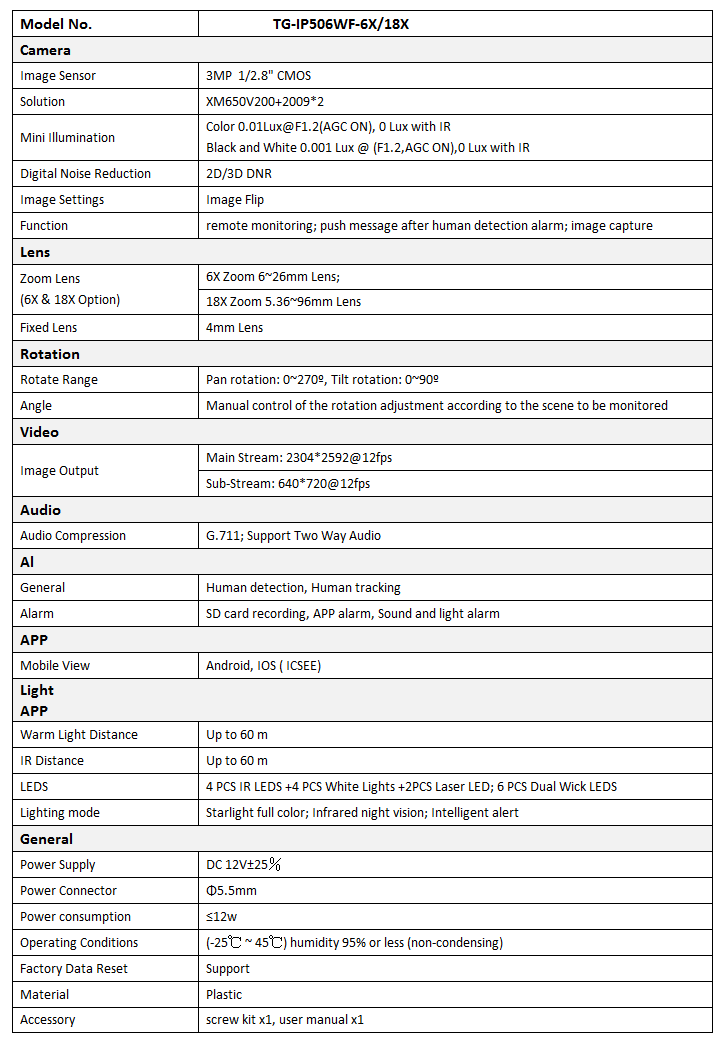

Camera

Image Sensor

3MP  1/2.8" CMOS

Solution

XM650V200+2009*2

Mini Illumination

Color 0.01Lux@F1.2(AGC ON), 0 Lux with IR

Black and White 0.001 Lux @ (F1.2,AGC ON),0 Lux   with IR

Digital Noise Reduction

2D/3D DNR

Image Settings

Image Flip

Function

remote monitoring; push message after human   detection alarm; image capture

Lens

Zoom Lens

(6X & 18X Option)

6X Zoom 6~26mm Lens;

18X Zoom 5.36~96mm Lens

Fixed Lens

4mm Lens

Rotation

Rotate Range

Pan rotation: 0~270º, Tilt rotation: 0~90º

Angle

Manual control of the rotation adjustment   according to the scene to be monitored

Video

Image Output

Main Stream: 2304*2592@12fps

Sub-Stream: 640*720@12fps

Audio

Audio Compression

G.711; Support Two Way Audio

Al

General

Human detection, Human tracking

Alarm

SD card recording, APP alarm, Sound and light   alarm

Network

Network Standard

2.4Ghz WiFi; RJ45 10/100M adaptive;

APP

Mobile View

P2P App: ICSEE (Android, IOS)

Light

Warm Light Distance

Up to 60 m

IR Distance

Up to 60 m

LEDS

4 PCS IR LEDS +4 PCS White Lights +2PCS Laser   LED; 6 PCS Dual Wick LEDS

Lighting mode

Starlight full color; Infrared night vision;   Intelligent alert

General

Power Supply

DC 12V±25％

Power Connector

Φ5.5mm

Power consumption

≤12w

Operating Conditions

(-25℃ ~ 45℃) humidity 95% or less (non-condensing)

Factory Data Reset

Support

Material

Plastic

Accessory

screw kit x1, user manual x1
