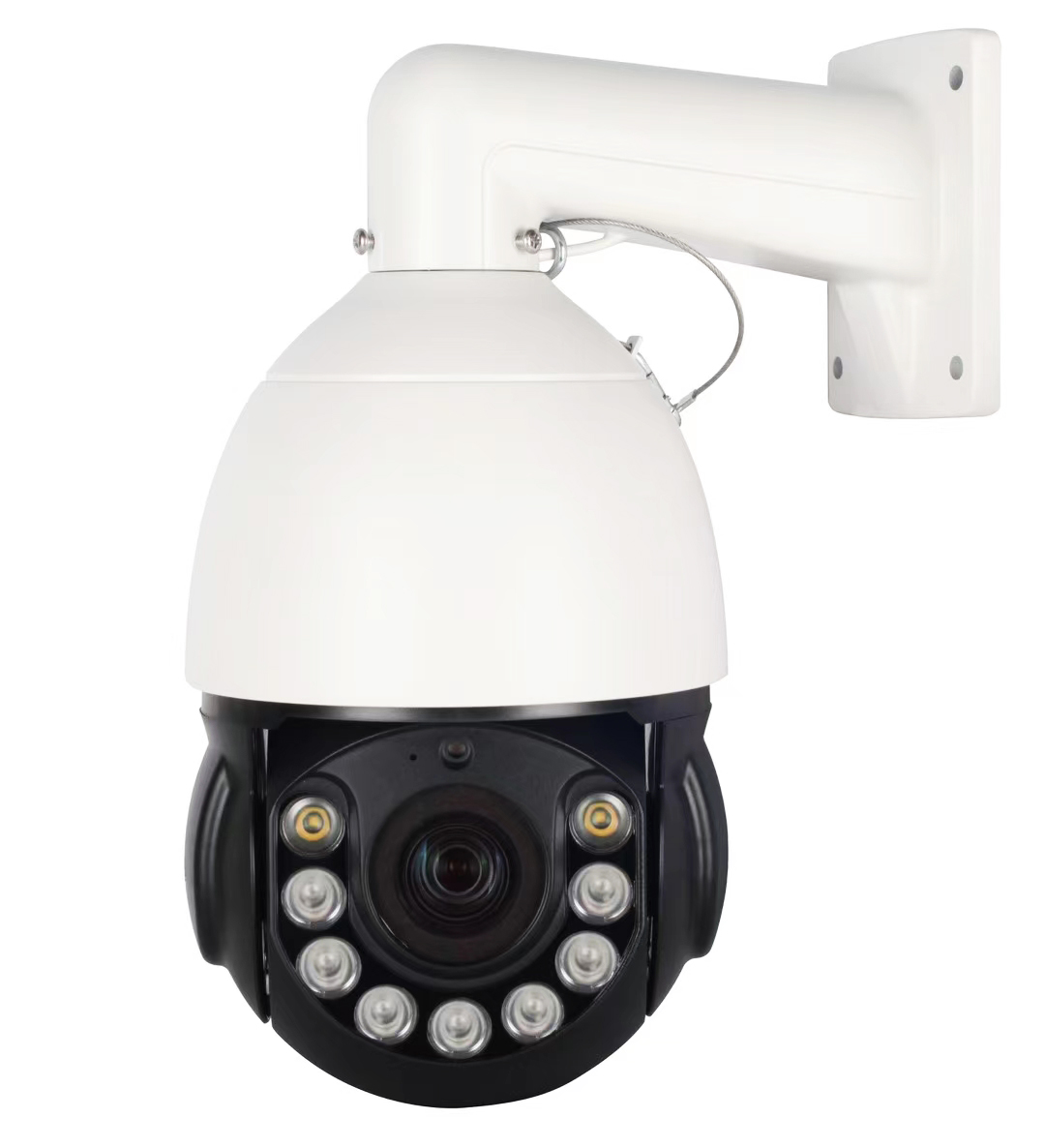

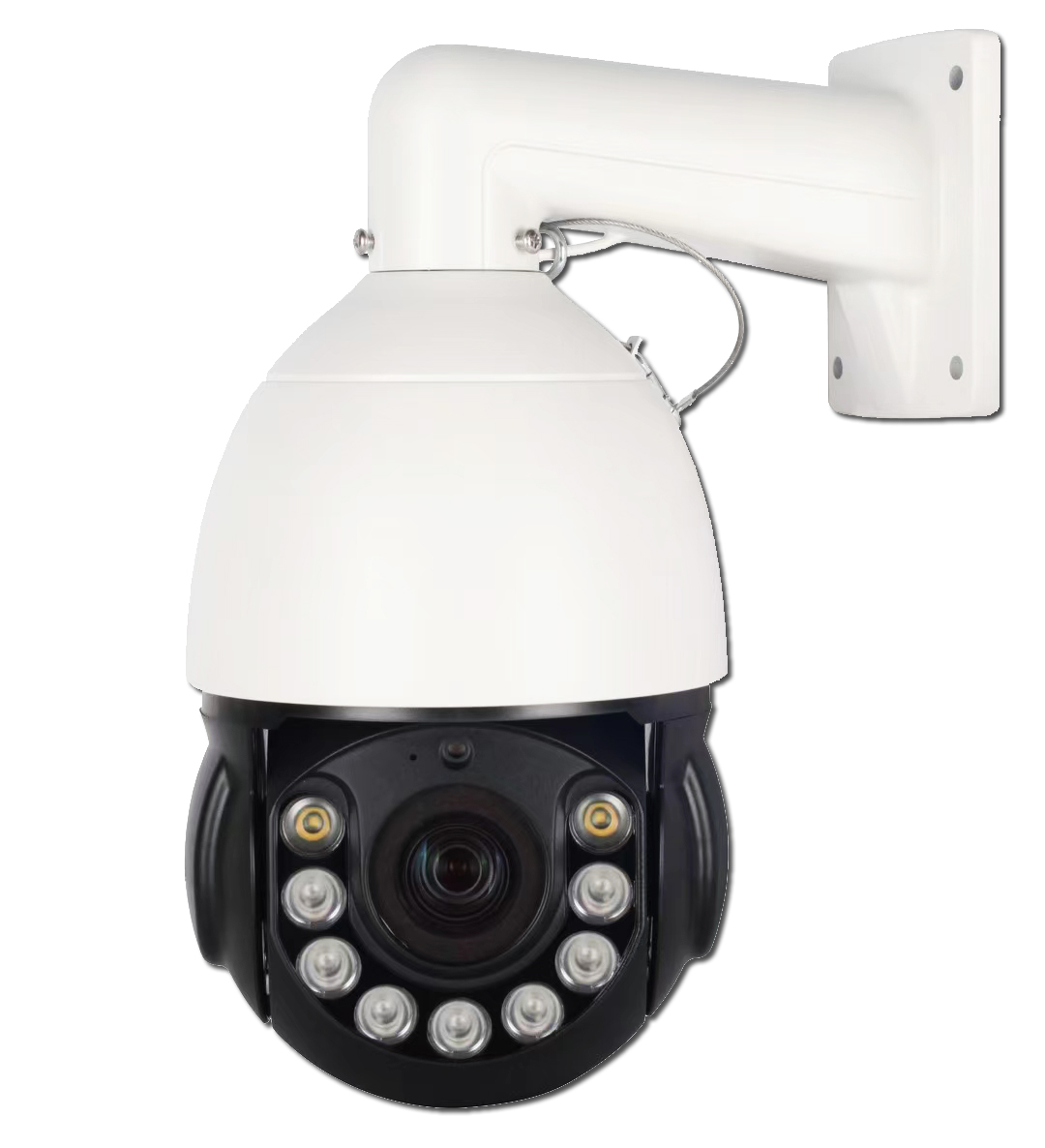

Auto Tracking PTZ TG-IP702GA/TG-IP705SA

Auto Tracking PTZ TG-IP702GA/TG-IP705SA

◆ 3D Humanoid Auto Tracking
◆ 2.0MP/5.0MP Resolution, 18X Optical Zoom

◆ Pan: 0°~360°, Tilt: -0°~93°; 220 Presets; 3 Tours

◆ 2pcs Laser & 7pcs ARRAY LEDs, 150M IR Range

◆ 2D/3D noise reduction, digital WDR

◆ H265/H265+/H264 Video Compression

◆ PoE optional; ONVIF compatible

◆ Free VMS & App; P2P Cloud

◆ Lightning Protection: Transient Voltage 6KV

◆ Metal Bullet Outdoor Waterproof IP66

0.00
0.00


◆ 3D Humanoid Auto Tracking
◆ 2.0MP/5.0MP Resolution, 18X Optical Zoom

◆ Pan: 0°~360°, Tilt: -0°~93°; 220 Presets; 3 Tours

◆ 2pcs Laser & 7pcs ARRAY LEDs, 150M IR Range

◆ 2D/3D noise reduction, digital WDR

◆ H265/H265+/H264 Video Compression

◆ PoE optional; ONVIF compatible

◆ Free VMS & App; P2P Cloud

◆ Lightning Protection: Transient Voltage 6KV

◆ Metal Bullet Outdoor Waterproof IP66

MODELTG-IP702GA-18XTG-IP705SA-18XTG-IP702GA-10XTG-IP705SA-10X
ZOOM CAMERA
Image SensorGC2063IMX335GC2063IMX335
Effective Pixels2MP5MP2MP5MP
Main Stream1920*1080

2592*1944;

2560*1440;

1920*1080

1920*1080

2592*1944;

2560*1440;

1920*1080

Lens

18X  Optical Motorized Zoom;

Auto Focus 5.35~96.3mm Zoom Lens

10X Optical Motorized Zoom;

Auto Focus 5.1~51mm Zoom Lens

AI Tracking3D Humanoid Auto Tracking
BLCSupport
AGCAuto/Manual
White BalanceAuto/manual/indoor/outdoor
Noise Reduction3D digital noise reduction
WDRSupport WDR (D-WDR)
BLCSupport
S/N Ratio≥50db (AGC closed)
PAN/TILT DOME
Protocol TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software ControlIE, CMS, Management Platform
Video compressionH.264/H.265/M-JPEG
Video Bit Rate32Kbps-16Mbps continuously adjustable, support CBR / VBR
Mobile ViewAndroid, iOS
Rotation RangePan: 0°~360º  Continuesly, Tilt: 0°~93º
Rotation SpeedPan: 0~90°/s , Tilt: 0~40°/s
Auto FlipSupport
Preset Points250pcs presets（dwell time 01-60s interval available）
Guard Tours3 groups ( each group 16 preset、dwell time and speed selectable)
AB scan rangeSupport, 0-355º
AB scan speed1-9 grades
Operating temperature-25℃~+60℃
Operation menuEnglish
Auto Control IR LEDPWM
Consumption≤10W
Related validationIP66,CE,FCC,RoHs
IR PARAMETERS
Auto Control IR LEDPWM
IR distanceup to 150 meters
LEDs2pcs Laser & 7pcs Array LED

Support ambient

light detection

IR illumination on 1-9 grades selectable
